Fa'amatalaga o oloa

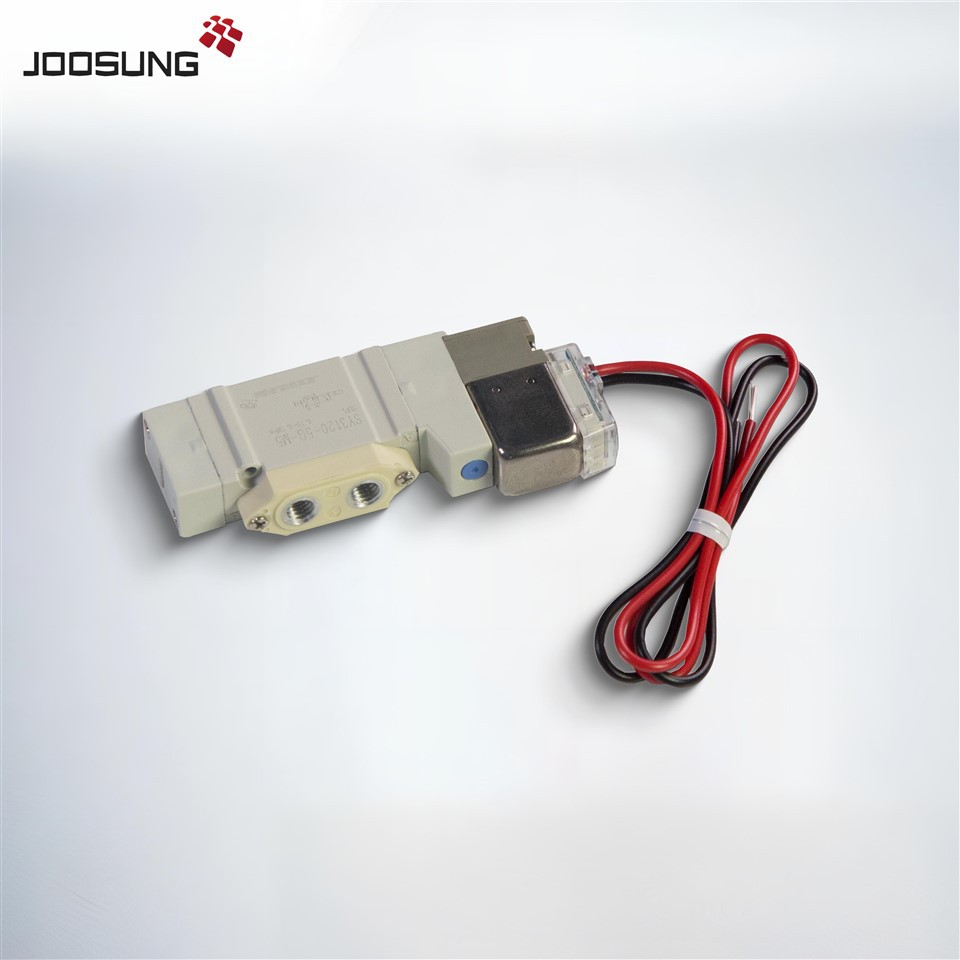

SY3000 Solenoid Valve: Ultra-Compact & High-Faatinoga 5-Port Solution
Fa'ainisinia mo le mana'omia o masini fa'apisinisi, o le SY3000 solenoid valve o lo'o tu i fafo o le fa'ata'ita'iga aupito itiiti i le SMC SY fa'asologa. O lona -maoti mamanu o le ki lea i le tu'ufa'atasiga lelei i le vateatea-siosiomaga fa'atapula'aina, fa'aolaina le fa'atinoga mautu mo le fa'atonutonuina o mea fa'agaioia pneumatic ma cylinders e aunoa ma se fa'aletonu.
I tua atu o lona telē, o le SY3000 fa'asologa e tu'uina atu ai le malosi fa'apitoa ma le fa'atuatuaina o le fa'agaioiga, e taua tele mo le fa'amalieina o faiga fa'apitoa. Fausia i mea malolosi, e -a'ele'elea, o nei alatoto e fa'amautinoa ai le umi o le tumau e tusa lava pe i lalo o tulaga faigata o galuega.
Tofo i le fa'aleleia atili o le fa'agasologa fa'afetai i le vave tali taimi a le SY3000 ma le fa'atonu sa'o o le tafe, fa'afetaui i le tele o fa'aoga. E le gata i lea, o faiga fa'apipi'i ma tausiga fa'alelei e fa'aoga -fa'auiga e fa'aitiitia ai taimi fa'aletonu ma tau fa'agaioiga, fa'ateleina ai lou gaosiga.
|
Auala e Oka SY Fa'asologa Pneumatic Solenoid Valve |
||||
|
SY5(Ⅰ)1(Ⅱ)20-5(Ⅲ)L(Ⅳ)□(Ⅴ)□(Ⅵ)-01 |
||||
|
Ⅰ. FUAFUAGA |
Ⅱ. Ituaiga O GALUEGA |
|||
|
3 |
SY3000 |
1 |
2 tulaga nofofua |
|
|
5 |
SY5000 |
2 |
2 tulaga faalua |
|
|
7 |
SY7000 |
3 |
3 tulaga tapunia ogatotonu |
|
|
9 |
SY9000 |
4 |
3 tulaga nofoaga fa'asuavai |
|
|
5 |
3 tulaga nofoaga tutotonu |
|||
|
Ⅲ. VOLTAGE FAITAU |
Ⅵ.Su'i le tusilima |
|||
|
1 |
100 VAC |
Nil: Leai |
||
|
2 |
110 VAC |
ituaiga tulei loka |
||
|
3 |
110 VAC [115 VAC] |
D:Uomi -liliu |
||
|
4 |
220 VAC [230 VAC] |
loka slotted ituaiga |
||
|
5 |
24 VDC |
U:Uomi -liliu |
||
|
6 |
12 VDC |
ituaiga leve loka |
||
|
Ⅳ. FAALAUELEI |
||||
|
G |
Umi uaea ta'ita'i 300 mm |
L |
Faatasi ai ma uaea ta'i (Umi 300mm) |
|
|
H |
Umi uaea ta'ita'i 600 mm |
LN |
E leai se uaea ta'i |
|
|
MO |
E leai se so'oga |
LO |
E leai se so'oga |
|
|
M |
Faatasi ai ma uaea ta'i (Umi 300 mm) |
D,Y |
Fa'atasi ai |
|
|
MN |
E leai se uaea ta'i |
FAIA, IO |
E leai se so'oga |
|
|
Ⅴ.Light/Surge voltage suppressor |
||||
|
Fa'ailoga eletise mo G,H,L,M,W |
Fa'ailoga eletise mo D,Y |
|||
|
leai |
E aunoa ma se fa'amalama/si'i volt suppressor |
leai |
E aunoa ma se fa'amalama/si'i volt suppressor |
|
|
S |
Fa'atasi ai ma le fa'aosoina o le voltage suppressor |
S |
Fa'atasi ai ma le fa'aosoina o le voltage suppressor |
Fa'atasi ai ma le fa'aosoina o le voltage suppressor |
|
(E le-ituaiga polar) |
(E le-ituaiga polar) |
|||
|
Z |
Fa'atasi ai ma le fa'amama fa'amama/si'i eletise |
Z |
Fa'atasi ai ma le fa'amama fa'amama/si'i eletise |
|
|
(E le-ituaiga polar) |
||||
|
R |
Fa'atasi ai ma le fa'aosoina o le voltage suppressor (E le-ituaiga polar) |
DOZ ma YOZ e le maua. |
||
|
U |
Fa'atasi ai ma le fa'aoso fa'aoso fa'aoso fa'aoso fa'aletonu (ituaiga le -polar) |
Mo va'a eletise AC e leai |
||
SYSeriesPneumaticSolenoidValveVaega Fa'atekinisi
|
SYSeriesPneumaticSolenoidValve Fa'amatalaga autu |
|||||
|
Fa'asologa |
SY3000 |
SY5000 |
SY7000 |
SY9000 |
|
|
Suavai |
Ea |
||||
|
Pailate totonu |
2 tulaga nofofua |
0.15 i le 0.7 |
|||
|
2 tulaga faalua |
0.1 i le 0.7 |
||||
|
3 tulaga |
0.2 i le 0.7 |
||||
|
Ambient ma vai vevela (C) |
-10 i le 50(Leai se fa'aisa) |
||||
|
Max.operating |
2 tulaga tasi, lua |
10 |
5 |
5 |
5 |
|
3 tulaga |
3 |
3 |
3 |
3 |
|
|
Fa'asolo i le tusilima(Taga'i lima) |
Tu'aiga tulei e le -loka, |
||||
|
Auala fa'asuavai pailate |
Ituaiga ta'i masani mo alavai autu ma pailate |
||||
|
Lubrication |
E le mana'omia |
||||
|
Fa'atonuga fa'apipi'i |
Le fa'atapulaaina |
||||
|
A'afiaga/Tete'e (m/s²) Fa'amatalaga) |
150/30 |
||||
|
Puipuiga |
Pefu fa'amaonia(* DIN fa'amau ma M8 so'oga: IP65) |
||||

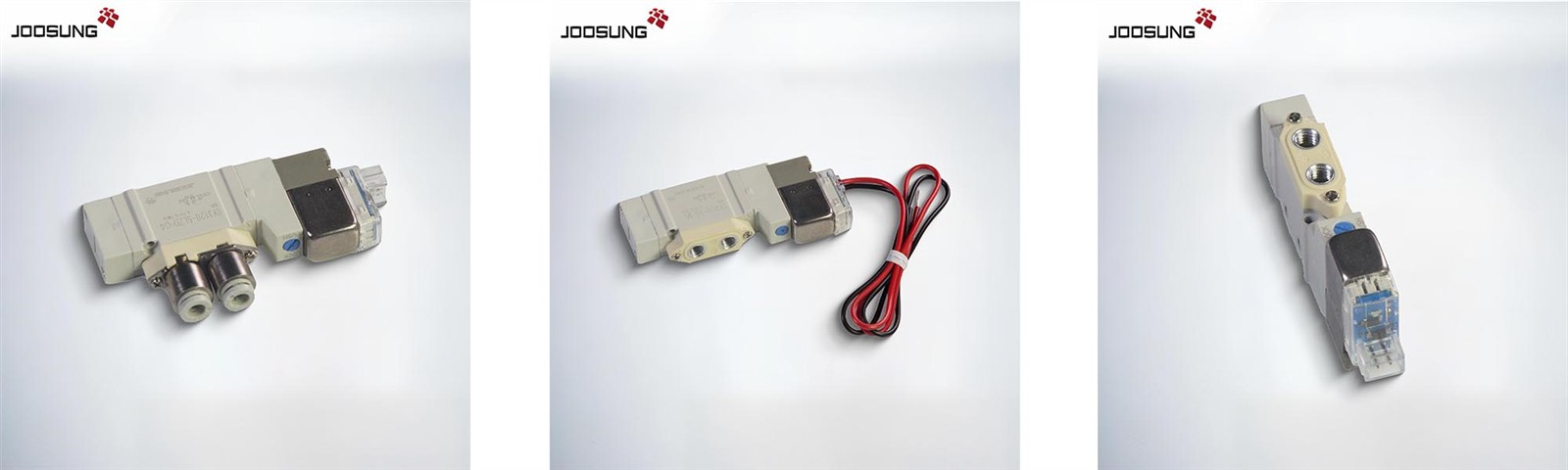

SMC SY3000 Fa'asologa Solenoid Valve Lisi Fa'ata'ita'iga
Lalo o le lisi atoa o SMC SY3000 faasologa solenoid valve faʻataʻitaʻiga. Fa'amolemole fa'afeso'ota'i matou mo fa'amatalaga auiliili ma tau.
|
SY3120-6L-M5 |
SY3120-5L-M5 |
SY3120-4L-M5 |
SY3120-6L-C4 |
SY3120-5L-C4 |
SY3120-4L-C4 |
|
SY3220-6L-M5 |
SY3220-5L-M5 |
SY3220-4L-M5 |
SY3220-6L-C4 |
SY3220-5L-C4 |
SY3220-4L-C4 |
|
SY3320-6L-M5 |
SY3320-5L-M5 |
SY3320-4L-M5 |
SY3320-6L-C4 |
SY3320-5L-C4 |
SY3320-4L-C4 |
|
SY3420-6L-M5 |
SY3420-5L-M5 |
SY3420-4L-M5 |
SY3420-6L-C4 |
SY3420-5L-C4 |
SY3420-4L-C4 |
|
SY3520-6L-M5 |
SY3520-5L-M5 |
SY3520-4L-M5 |
SY3520-6L-C4 |
SY3520-5L-C4 |
SY3520-4L-C4 |
|
SY3120-6G-M5 |
SY3120-5G-M5 |
SY3120-4G-M5 |
SY3120-6G-C4 |
SY3120-5G-C4 |
SY3120-4G-C4 |
|
SY3220-6G-M5 |
SY3220-5G-M5 |
SY3220-4G-M5 |
SY3220-6G-C4 |
SY3220-5G-C4 |
SY3220-4G-C4 |
|
SY3320-6G-M5 |
SY3320-5G-M5 |
SY3320-4G-M5 |
SY3320-6G-C4 |
SY3320-5G-C4 |
SY3320-4G-C4 |
|
SY3420-6G-M5 |
SY3420-5G-M5 |
SY3420-4G-M5 |
SY3420-6G-C4 |
SY3420-5G-C4 |
SY3420-4G-C4 |
|
SY3520-6G-M5 |
SY3520-5G-M5 |
SY3520-4G-M5 |
SY3520-6G-C4 |
SY3520-5G-C4 |
SY3520-4G-C4 |
